LATHE MACHINE :

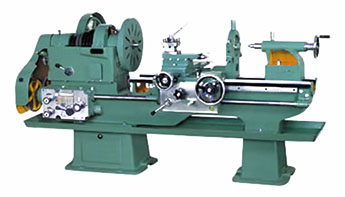

  Heavy Duty Lathe Machine :
Model No.
Distance between Centres
Approx. Wt.
Space Occupied (Approx.)
A-1 1675 mm.
550 mm.
1060 kg.
2120 x 1475 mm.
A-2 2135 mm.
1000 mm.
1205 kg.
2575 x 1475 mm.
A-3 2740 mm.
1550 mm.
1410 kg.
3185 x 1475 mm.
A-4 3050 mm.
1850 mm.
1655 kg.
3490 x 1475 mm.
A-5 3660 mm.
2450 mm.
1910 kg.
1900 x 1475 mm.
Details
Heavy duty lathe machine
1675 MM.,2135 MM.,2740 MM., 3050 MM., & 3660 MM.
CAPACITY
METRIC
Height of Centre
254 mm.
Swing Over Bed
490 mm.
Swing Over Cross Slide
290 mm.
Movement of Cross Slide
300 mm.
Swing of Gap
800 mm.
BED
Bed Type
2 V & 2 Flat
Bed Width
325 mm.
Length of Gap in Bed
150 mm.
Length of Gap in Front of Face Plate
200 mm.
MAIN SPINDLE
Size of Threaded Spindle Nose
6 T.P.I. 75 mm.
Taper Bore in Spindle Sleeve
MT-4
Spindle Bore
52 mm.
TAIL STOKE
Ram Diameter
50.8 mm.
Taper Bore in Centre Sleeve
MT-4
Ram Travel
190 mm.
COMPOUND SLIDE
Travel of Compound Slide
150 mm.
Tool Shank Section
25 x 25 mm.
SPEEDS
No. of Speeds
8
Range
25 - 475 RPM
THREAD/NO. OF RANGE
Lead Screw Diameter & Pitch
38.1 mm. x 4 TPI
Metric
13/1 to 6 mm.
Inch
19/2 to 24 TPI
ELECTRICAL
Main Motor (1440 R.P.M. -AC-3 Phase)
2 H.P. / 440 V

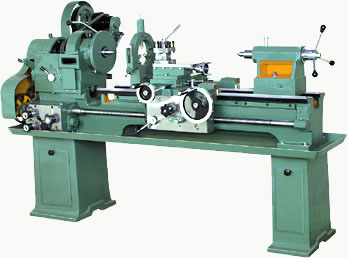

  Meduim Duty Lathe Machine :
Model No.
Distance between Centres
Approx. Wt.
Space Occupied (Approx.)
A-1 1370 mm.
450 mm.
580 kg.
1650 x 970 mm.
A-2 1600 mm.
725 mm.
660 kg.
1950 x 970 mm.
A-3 1830 mm.
990 mm.
685 kg.
2100 x 970 mm.
Details
Medium duty lathe machine
1370 MM., 1600 MM., & 1830 MM.
CAPACITY
METRIC
Height of Centre
215 mm.
Swing Over Bed
425 mm.
Swing Over Cross Slide
260 mm.
Movement of Cross Slide
250 mm.
Swing of Gap
620 mm.
BED
Bed Type
2 V & 2 Flat
Bed Width
279 mm.
Length of Gap in Bed
110 mm.
Length of Gap in Front of Face Plate
125 mm.
MAIN SPINDLE
Size of Threaded Spindle Nose
6 T.P.I. 75 mm.
Taper Bore in Spindle Sleeve
MT-4
Spindle Bore
52 mm.
TAIL STOKE
Ram Diameter
50.8 mm.
Taper Bore in Centre Sleeve
MT-4
Ram Travel
150 mm.
COMPOUND SLIDE
Travel of Compound Slide
150 mm.
Tool Shank Section
25 x 25 mm.
SPEEDS
No. of Speeds
6
Range
40 - 550 RPM
THREAD/NO. OF RANGE
Lead Screw Diameter & Pitch
31.75 mm. x 4 TPI
Metric
19/0.50 to 8.0 mm.
Inch
23/4 to 40 TPI
ELECTRICAL
Main Motor (1440 R.P.M. -AC-3 Phase)
2 H.P. / 440 V

Light Duty Lathe Machine :
Model No.
Distance between Centres
Approx. Wt.
Space Occupied (Approx.)
A-1 1370 mm.
650 mm.
440 kg.
1650 x 840 mm.
A-2 1600 mm.
875 mm.
480 kg.
1880 x 840 mm.
A-3 1830 mm.
1100 mm.
500 kg.
2100 x 840 mm.
Details
Light duty lathe machine
1370 MM., 1600 MM, & 1830 MM.
CAPACITY
METRIC
Height of Centre
165 mm.
Swing Over Bed
325 mm.
Swing Over Cross Slide
180 mm.
Movement of Cross Slide
225 mm.
Swing of Gap
500 mm.
BED
Bed Type
2 V & 2 Flat
Bed Width
238 mm.
Length of Gap in Bed
110 mm.
Length of Gap in Front of Face Plate
125 mm.
MAIN SPINDLE
Size of Threaded Spindle Nose
8 T.P.I. 60 mm.
Taper Bore in Spindle Sleeve
MT-3
Spindle Bore
40 mm.
TAIL STOKE
Ram Diameter
38.1 mm.
Taper Bore in Centre Sleeve
MT-3
Ram Travel
115 mm.
COMPOUND SLIDE
Travel of Compound Slide
120 mm.
Tool Shank Section
22 x 22 mm.
SPEEDS

No. of Speeds
8
Range
35 - 825 RPM
THREAD/NO. OF RANGE
Lead Screw Diameter & Pitch
25.4 mm. x 4 TPI
Metric
19/0.50 to 8.0 mm.
Inch
23/4 to 40 TPI
ELECTRICAL
Main Motor (1440 R.P.M. -AC-3 Phase)
1 H.P. / 440 V
